300PSI Pneumatic Quick Release Coupling L Series Quick Nipples for Lincoln Interchange

Brand Name : QPE

Model Number : LPF SERIES

Certification : ISO9000

Place of Origin : CHINA

MOQ : 300

Price : Negotiable

Supply Ability : 90,000 pcs/week, according the capacity of the assembly workshop

Delivery Time : Within 30 days or as per customers' requirement

Packaging Details : Standard exporting package or as per customers' requests

Material : Carbon steel

Size : 1/4"

Thread : BSPP, BSPT, NPT, NPTF, SAE

Locking Device : CAM

WP : Working pressure to 250psi

WT : -10℃ to +165℃

Standard : Schrader Interchange

Product Name : Pneumatic Quick Release Coupling

Contact Now

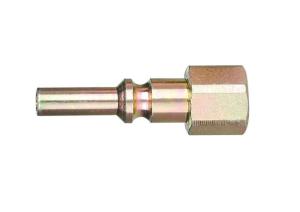

300PSI Pneumatic Quick NIpple, "L" Series Quick Nipples For Lincoln Interchange

Features:

1-L series couplings are interchangeable with Lincoln’s long stem series couplings.

2-L series couplings have a full opening tubular valve for maximum flow and a built in sleeve guard to minimize accidental disconnect.

3-The L series is only available in 1/4 body size.

4-L series couplings have all brass bodies and steel valves.

5- Standard seal material is Buna-N(nitrile). See the coupling selection and ordering information guide at the beginning of section A and the fluid compatibility Chart at the end of this catalogue for optional materials.

Specifications:
Body: 1/4
Rated pressure(PSI): 300
Temperature range (nitrile seal): -40-- +250 F
Locking device: 6 balls
Vacuum service: Not recommended

300PSI Pneumatic Quick Release Coupling L Series Quick Nipples for Lincoln Interchange

Body Size(In.)	Part No. Steel	Thread Size NPT	Dimensions(in.) Overall Length	Dimensions(in.) Exposed Length	Dimensions(in.) Hex Size	Dimensions(in.) Largest Diameter
			D	E	F	G
1/4	LPF-N02	1/4-18	2.10	0.77	0.62	0.72

Body Size(In.)	Part No. Steel	Thread Size NPT	Dimensions(in.) Overall Length	Dimensions(in.) Exposed Length	Dimensions(in.) Hex Size	Dimensions(in.) Largest Diameter
			D	E	F	G
1/4	LPM-N02	1/4-18	2.25	0.92	0.56	0.65
